LOCKTON

'LEG-TON™' (SQ. END) INTERNAL - Snib & Lever

Art ID:
LG-714-13V-25-SCP

Description

PRODUCT DESCRIPTION

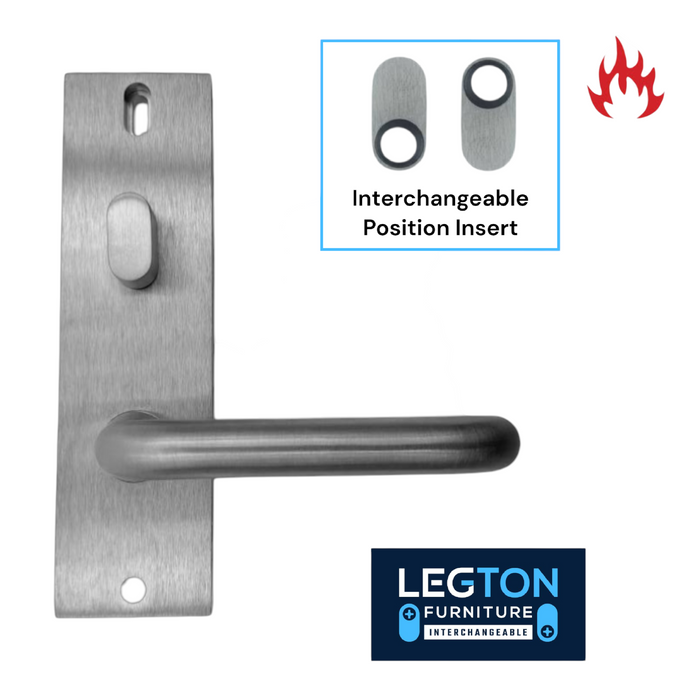

The LOCKTON Art. LG-714-13V-25-SCP - 'LEG-TON' Internal Square Plate with Turn Snib & Lever

"Many Brands - One Interchangeable Solution"

The 'LEG-TON™' Furniture range is designed to be an interchangeable furniture solution for all major Australian and New Zealand Mortice Lock Furniture Brands such as LEGGE™, DORMAKABA™, LOCKWOOD™ and LOCKTON™.

The Internal Furniture comes with an easy to fit rotatable insert - Select Top Hole for LEGGE™ or Bottom Hole for all other brands.

The flexible application of the range means you can easily replace one or both sides of existing furniture installations. It is also carefully designed to cover existing marks, holes and paint outlines from previous installations.

PRODUCT SPECIFICATION

  • Material: Solid Brass
  • Handing: Easy Change Handing
  • Quality Return Spring
  • Mounting Screw Size: M4 x 68mm

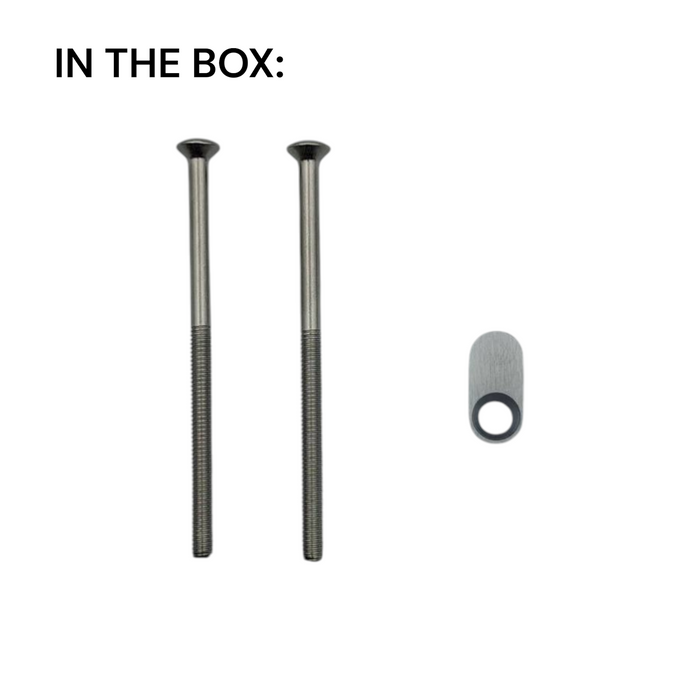

  • Supplied with: 2 x M4 Fixing Screws & 1 x Screw Position Insert
  • 10 Year Warranty (*)

Plate Specifications

  • Dimensions (L x W x D): 175 x 48 x 12mm
  • Mounting Screw Spacing: 148 or 158mm
  • End Type: Square



Lockwood, Dormakaba and Legge are trademarks of their respective owners.*
