LOCKTON

'LEG-TON™' (SQ. END) EXTERNAL - Lever Only

Art ID:
LG-703-02C-25-SCP

Description

PRODUCT DESCRIPTION

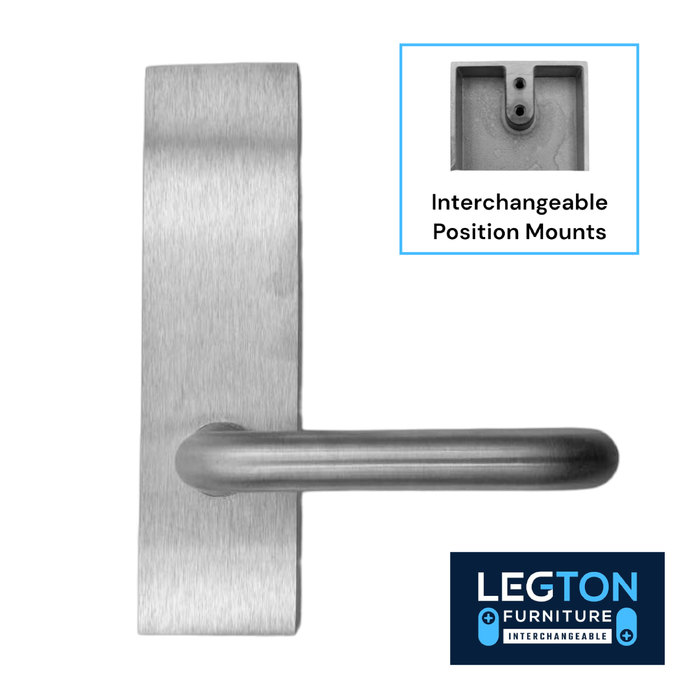

The LOCKTON Art. LG-703-02C-25-SCP - 'LEG-TON' External Square Plate with Lever Only

"Many Brands - One Interchangeable Solution"

The 'LEG-TON™' Furniture range is designed to be an interchangeable furniture solution for all major Australian and New Zealand Mortice Lock Furniture Brands such as LEGGE™, DORMAKABA™, LOCKWOOD™ and LOCKTON™.

The External Furniture comes with a multi-thread design that aligns with every common mounting screw pattern.

The flexible application of the range means you can easily replace one or both sides of existing furniture installations. It is also carefully designed to cover existing marks, holes and paint outlines from previous installations.

PRODUCT SPECIFICATION

  • Material: Solid Brass
  • Handing: Easy Change Handing
  • Quality Return Spring
  • Mounting Screw Size: M4 x 68mm

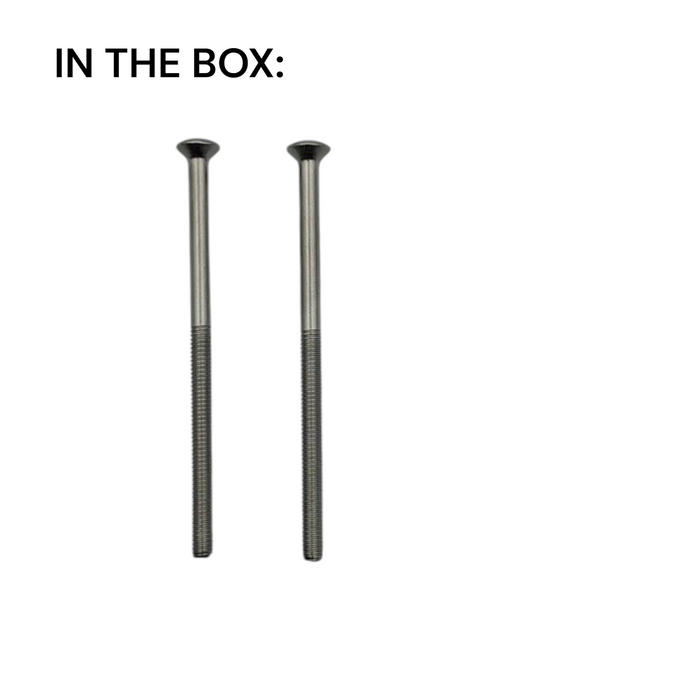

  • Supplied with: 2 x M4 Fixing Screws
  • 10 Year Warranty (*)

Plate Specifications

  • Dimensions (L x W x D): 175 x 48 x 12mm
  • Mounting Screw Spacing: 148 or 158mm
  • End Type: Square



Lockwood, Dormakaba and Legge are trademarks of their respective owners.*
