LOCKTON

'EUROSPAN-6' CYLINDER *OFFSET* (35mm/65mm) DBL EURO FIXED 6-Pin *Satin Chrome* (ALB)

Art ID:
496-1-O/35/65-SC-ALB

Description

PRODUCT DESCRIPTION

The LOCKTON 'EUROSPAN™-6' Extended Euro Cylinder System is designed to provide a working EURO Cylinder Solution on door installations that are either specially offset or thicker than industry standard. This enables proper key and lock operation without having the cylinder excessively recessed within the lock furniture and door body.

"Built to Span Distance"

Using a simple extended internal rod system, the 'EUROSPAN-6' system enables use of industry standard Euro Barrels and their Inline Restricted counterparts without complicated assembly or specialized part ordering.

The 'EUROSPAN-6' System is available in OFFSET and EXTENDED configurations making it ideal for smart-lock installations, oversized doors and offset retrofitting where additional cylinder length is required.

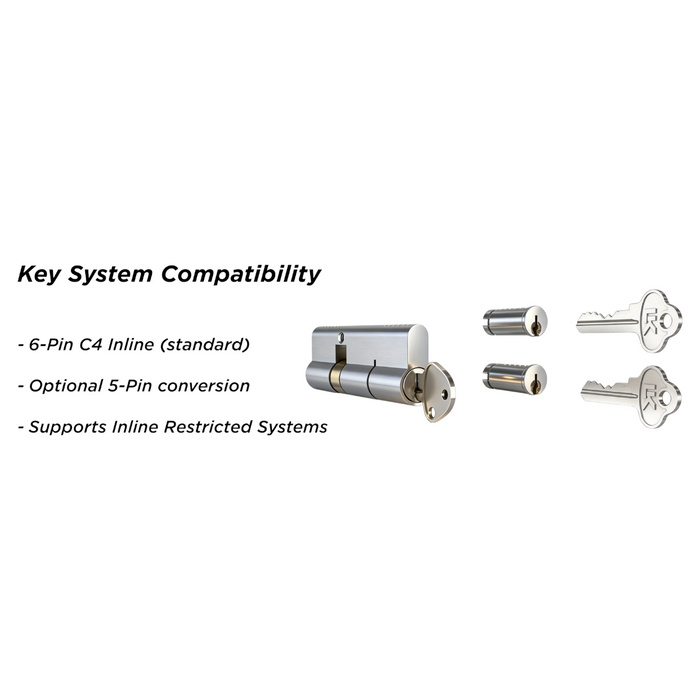

NOTE: The cylinder can also be easily converted over to a 5-Pin Configuration using the 'EUROSPAN™-5' Kit Range (see RELATED PRODUCTS).

PRODUCT SPECIFICATION

  • Cylinder Type: Double Euro w/ Fixed Cam
  • Extension Type: Offset Extended

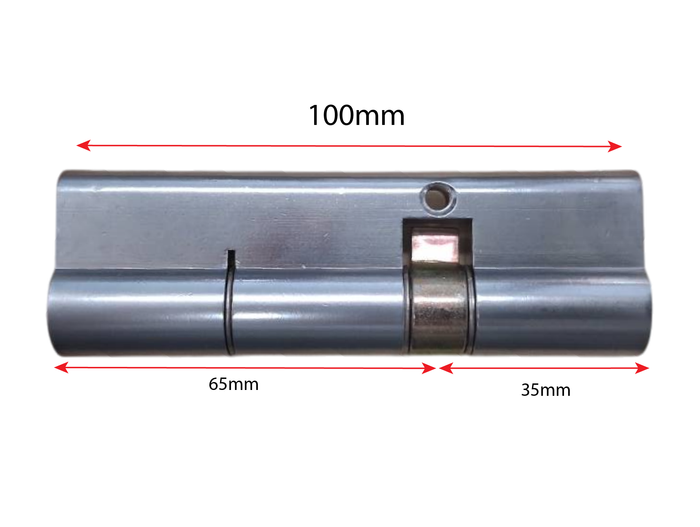

  • Cylinder Length: 100mm (35mm/65mm)
  • Cylinder Configuration: ALB (Less Barrel) - Also Available in KD (Keyed to Differ) & KA (Keyed Alike)
  • Finish: Satin Chrome
