'E-Series' CADELL52 Commercial & Domestic Electronic Lever Lock KIT *BLACK* - Incl. 95mm Mortice Lock (Art. SG-ML95)

Art ID:
CADELL52-BLK-ML95

Description

PRODUCT DESCRIPTION

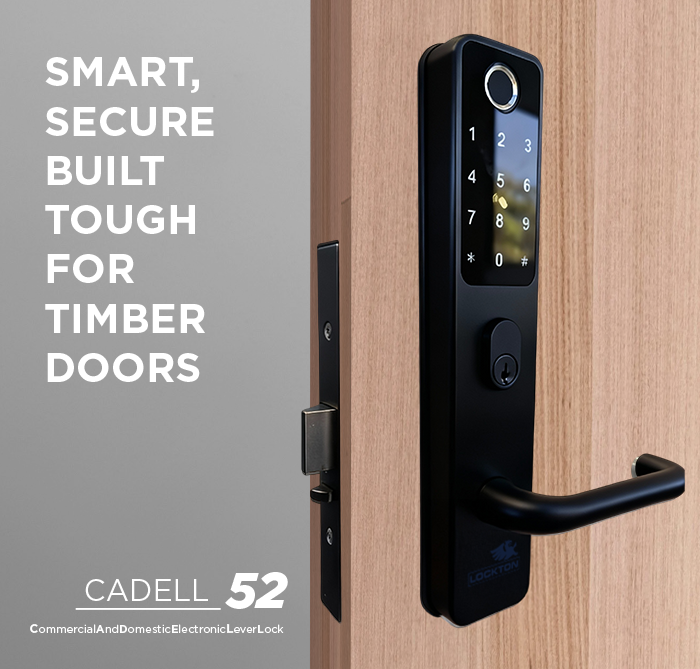

The LOCKTON Art. CADELL52-BLK-ML95 Electronic Lever Mortice Lock Kit w/ Matte Black Finish.

The CADELL52 (Commercial and Domestic Electronic Lever Lock) is the latest evolution in the LOCKTON E-Series Range that is built to suit a wide variety of both Commercial and Domestic Applications including Apartment Blocks, Schools, Businesses, Hospitals, Government Buildings and Private Residences.

The CADELL52 is designed to effortlessly retrofit over existing Australian Mortice Lock installations.

The CADELL52 can also be used to replace existing installations of most knobsets, leversets and deadbolts on the market.

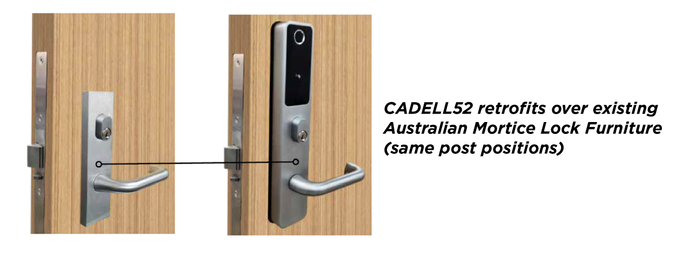

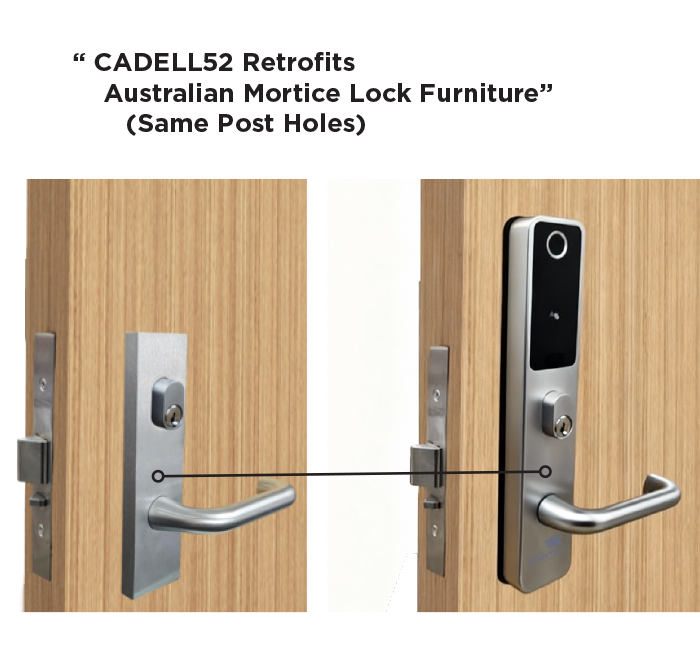

In addition, the CADELL52 furniture will fit over most existing Commercial Mortice Lock Furniture installations due to the fixing posts being positioned identically to the standard Australian Mortice Furniture Post Spacing.

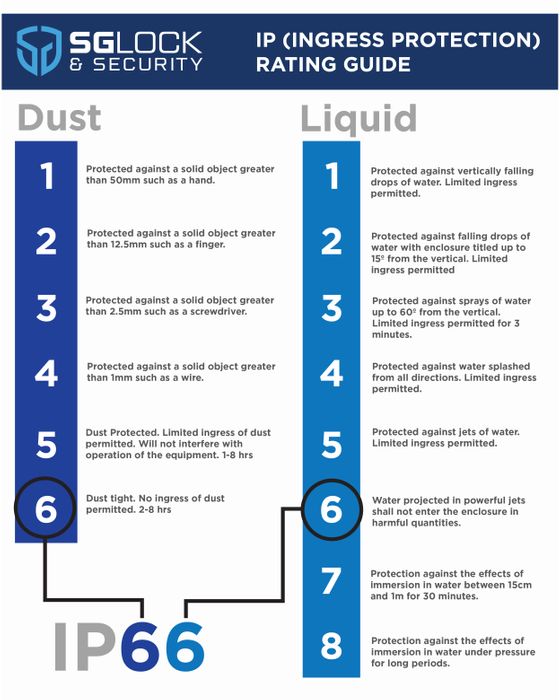

  • IP66 Rating on both external and internal handles means this lock can be installed in almost any application
  • Lock can be accessed via PIN Code, Fingerprint, RFID Tag, Bluetooth/App Control and Key Override
  • Key Override via 6-Pin C4 Rekeyable Oval Cylinder that can be converted to restricted profiles
  • Easily Use and Manage the lock via TTLOCK Phone App. Open the Lock, Add Users, Issue Temporary Codes and lots more
  • Optional Gateway accessories allow for remote access and control of lock via internet
  • Unlimited number of Bluetooth Users and Customised PIN Codes can be added to lock
  • Up to 1000 RFID Tags can be programmed and up to 100 Unique Fingerprint users can also be added

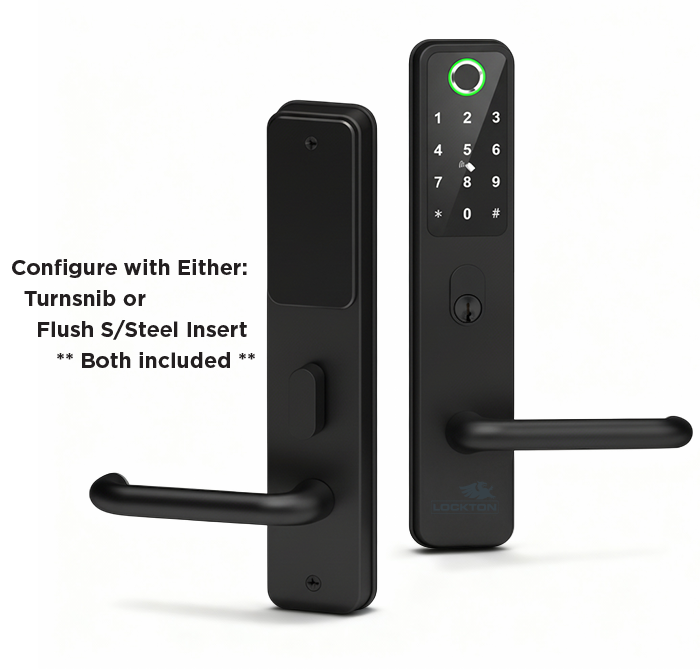

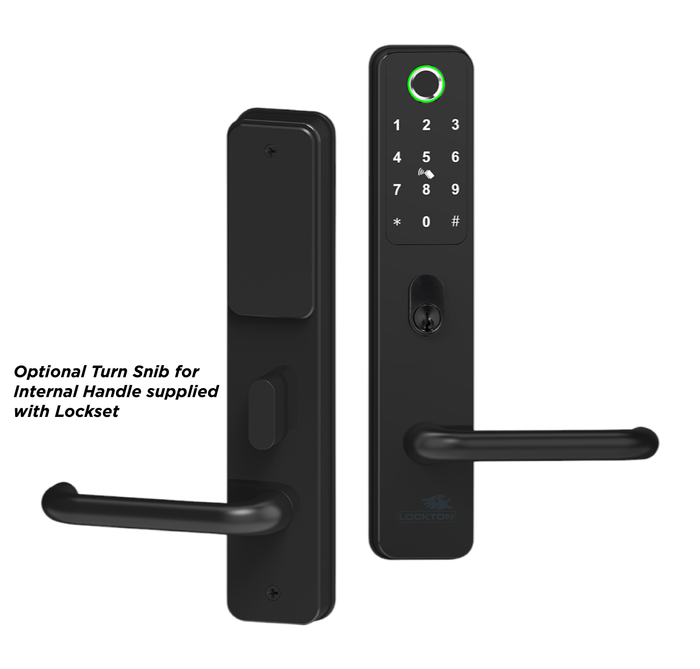

  • Internal Handle comes set as Passage but can be converted to include a Turn Snib for added security with included conversion kit
  • Also available in 60mm Backset Configuration (see RELATED PRODUCTS)

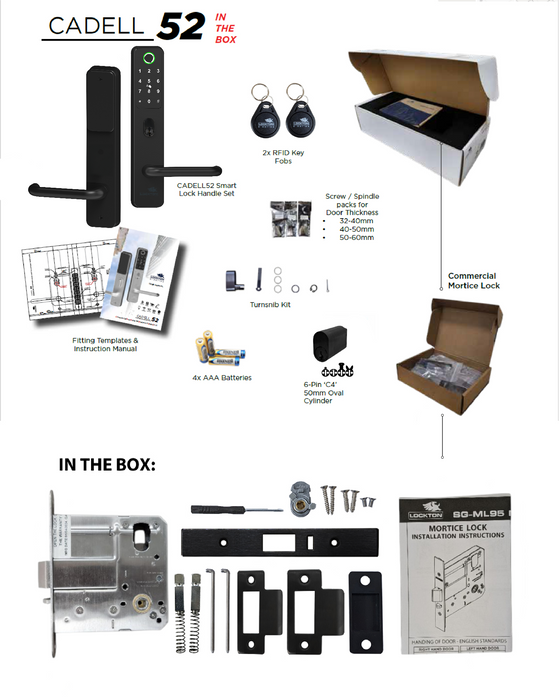

Lock is supplied with the following:

  • 1 x CADELL52 Smart Lock Handle Set
  • 2 x RFID Key Fobs
  • 3 x Screw/Spindle Packs for varying Door Thicknesses
  • 4 x AAA Batteries
  • 1 x SG-ML95 95mm Backset Mortice Lock
  • 1 x 6-Pin C4 Oval Cylinder
  • 1 x Turnsnib Conversion Kit
  • 1 x Fitting Template
  • 1 x Instruction Manual

PRODUCT SPECIFICATION

  • Finish: Matte Black
  • IP Rating: IP66
  • Lock Backset: 95mm
  • Mortice Lock Faceplate Dimensions (L x W): 175 x 25mm
  • Mortice Lock Strike Plate Dimensions (L x W): 70 x 46mm
  • Handle Dimensions (H x W x D): 263 x 52 x 22mm
  • Handle Material: Solid Stainless Steel
  • Handle Projection: 48mm
  • 2mm Pressed 304 Stainless Steel
  • Suitable Door Thickness: 32-60mm
  • Suitable Door Weight: 20 to 120kgs
  • Batteries: 4 x 1.5V AAA Alkaline
  • Battery Life: Approx. 1 Year
  • 3 Year Electronic Warranty (*)
  • 10 Year Mechanical Warranty (*)

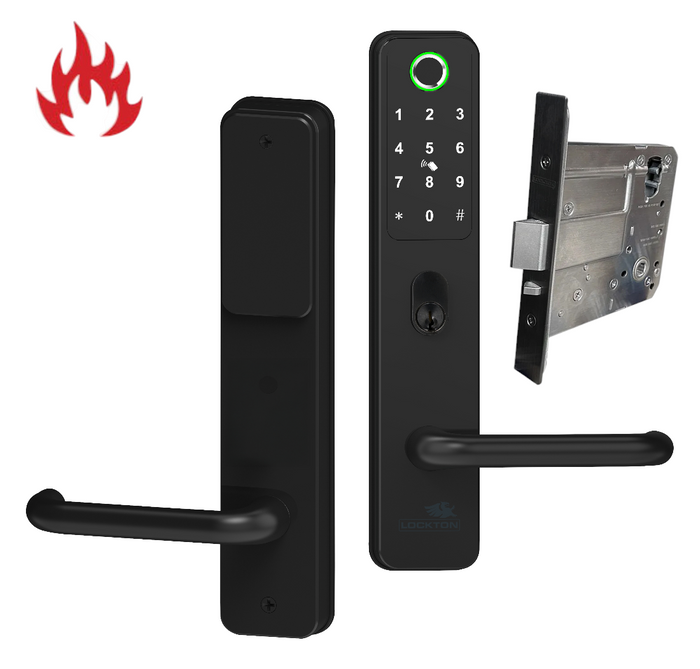

  2-Hours : This product has been Fire tested & passed up to 2 hours

 Design for Access and mobility: This product complies with the Disability Access requirements of AS1428.1-2009 (DDA)


Australian Registered Design No. 202512170 Patent Rights Reserved in Australia & Internationally - AU2025900875
