LOCKTON
'100 Series' DOOR CLOSER - Rack & Pinion (2/3/4)
Art ID:
SGDC100-S
Description
PRODUCT DESCRIPTION

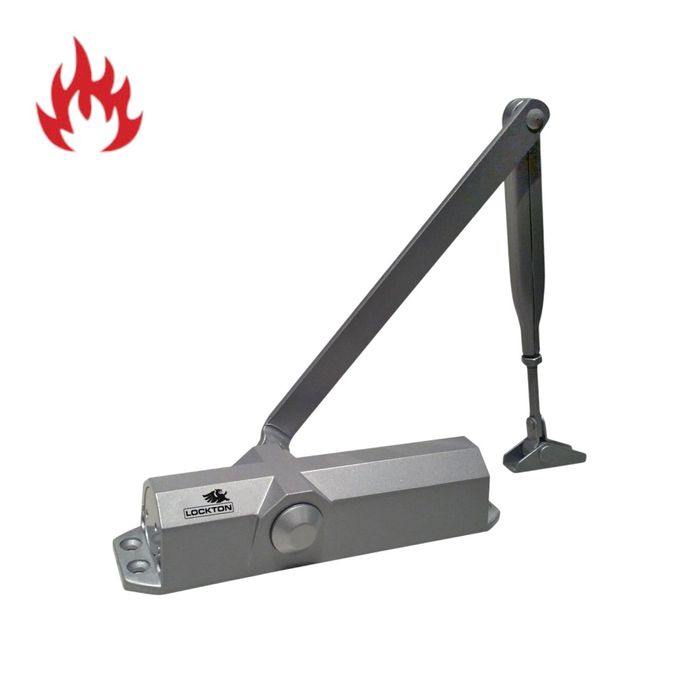

The LOCKTON Art. SGDC100-S Rack & Pinion Door Closer.
PRODUCT SPECIFICATION
- Rack & Pinion operation
- Suits Left & Right Handed Doors
- Suits Inward & Outward Opening Doors
- Comes with Standard arm
- Parallel Arm Bracket
- Supplied with both Timber and "Self Tapping" Metal screw packs
- Simple to read installation instructions
- Can be fitted with optional Hold Open Arm (Please see RELATED PRODUCTS)
- Closing, Latching Speed & Backcheck Adjustment
- Closing range 180° - 15°
- Latching speed range 15° - 0°
- Suitable for door sizes 2/3/4 by mounting template adjustment
- Size #2: Door width of 850mm & Weight of 40kg
- Size #3: Door width of 950mm & weight of 60kg
- Size #4: Door width of 1100mm & Weight of 80kg
- 10 Year Warranty (*)
- Fire Rated AS1905, As1530 (2 Hours)
- Tested & certified to BS EN 1154:1997
- MADE IN TAIWAN
- Stock from December 2024 supplied with Backcheck
2-Hours : This product has been Fire tested & passed up to 2 hours
