LOCKTON

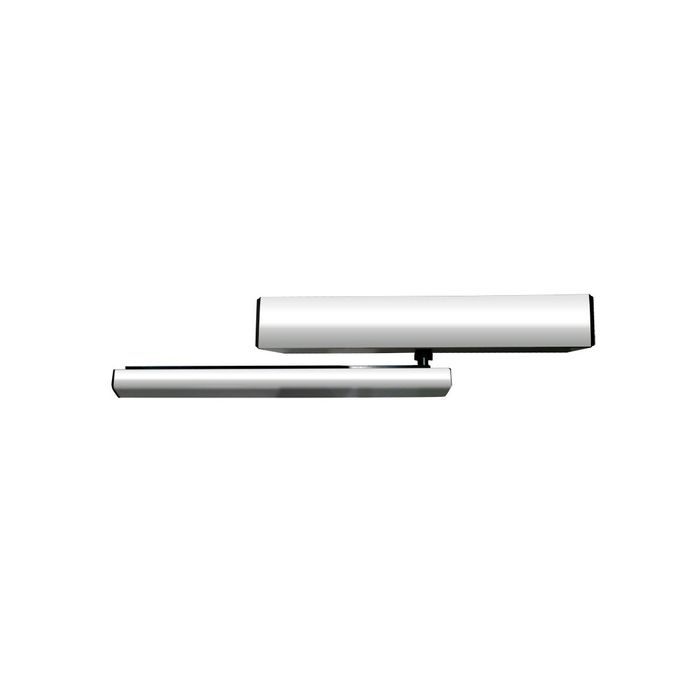

AUTO DOOR CLOSER - PUSH

Art ID:
DSW100-G

Description

PRODUCT DESCRIPTION

  • The Dura Swing Automatic Door Operator can be retrofitted simply and effectively on most doors widely used in offices, hospitals, commercial and industrial environments.
  • Low noise operation

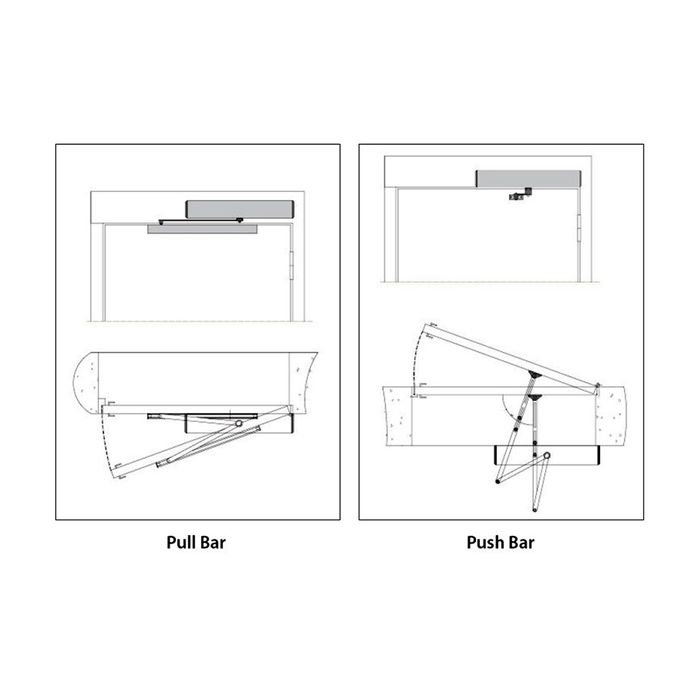

  • B-Type: Pull door to open – DSW mounted on pull side
  • G Type: Push door to open – DSW mounted on push side
  • Safe and reliable performance
  • More convenient working environment
  • Door will immediately re-open in the reverse direction if contact is made with an obstacle or force

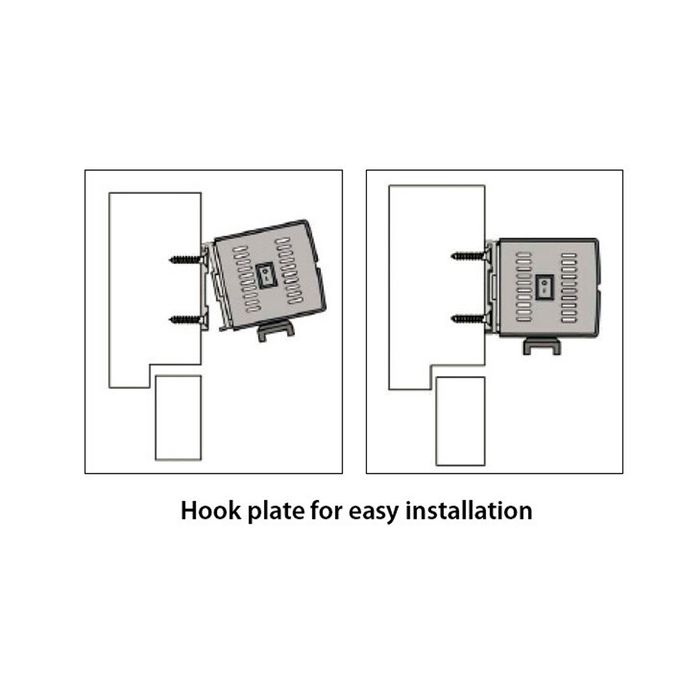

  • Innovative mechanical design offers fast and effective installation
  • Connectable to sensors, access control, safety beam protection and electric lock power output interface systems

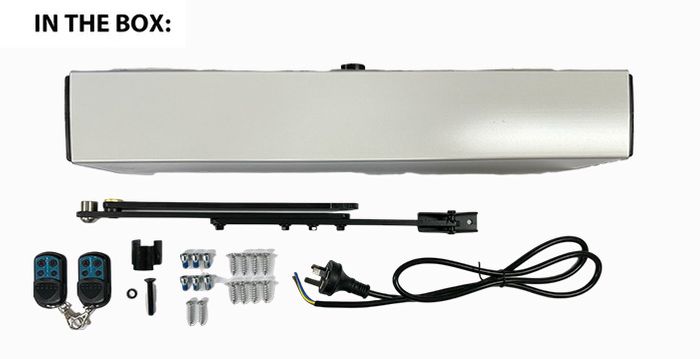

  • Comes with 2 x fixed code remotes. These can be copied with the JMA - M-BT aftermarket remote.

PRODUCT SPECIFICATION

  • Door configuration: Single leaf
  • Limited Weight: ≤1x100kg
  • Door leaf width: ≤1200mm
  • Power voltage: AC 220V±10%, 50-60Hz
  • Power consumption: 50W
  • Opening speed: 250-450mm/S (adjustable)
  • Closing speed: 250-450mm/S (adjustable)
  • Opening time: 3-7S (adjustable)
  • Hold-open time: 1-30S (adjustable)
  • Manual force: <30N
  • Swinging noise: ≤55Db
  • Environment temperature: -20 ~ +50°C
  • Finish: Silver
  • Warranty: 12-Months


Art.Description
DSW100-B Auto Door Closer. B Type (Pull)
DSW100-GAuto Door Closer. G Type (Push)
