LOCKTON

MOTION SENSOR 'Uni-Directional' or 'Bi-Directional' Sensing - works with DSW100 Auto Door Closers

Art ID:
SGSU100

Description

PRODUCT DESCRIPTION

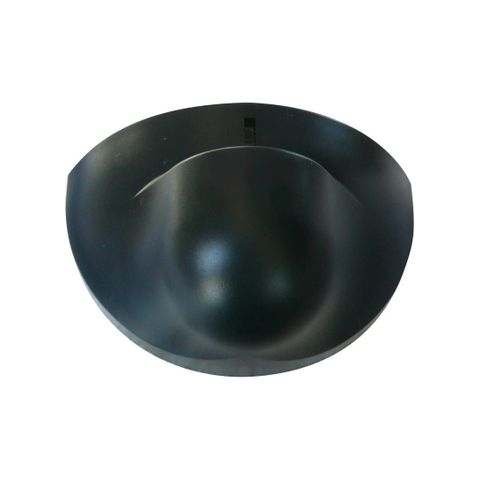

The LOCKTON SGSU100 Motion Sensor, compatible with DSW100 Automatic Door Closers.

PRODUCT SPECIFICATION

  • The reflective infrared sensor provides a wide and deep activation zone to ensure automatic doors are opened when someone approaches them
  • K Band microwave technology is universally compatible with all swinging and sliding automatic doors
  • 3-D adjustable antenna ensures precise activation pattern position
  • Microprocessor screens out possible weather condition interference
  • Easy to adjust on site
  • Safe and reliable performance
  • Effective installation
  • Supply Voltage: 12 to 24V AC/DC
  • Detection area Wide Pattern: W 3.96 m x D 1.98 m
  • Detection area Narrow Pattern: W 1.98 m x D 2.43 m
  • Minimum detection speed: 2 Inches per second
  • Mounting height: Up to 4 m
  • Dimensions: W 120 mm x H 80 mm x D 50 mm
  • Finish: Black
  • 12 Month Warranty
