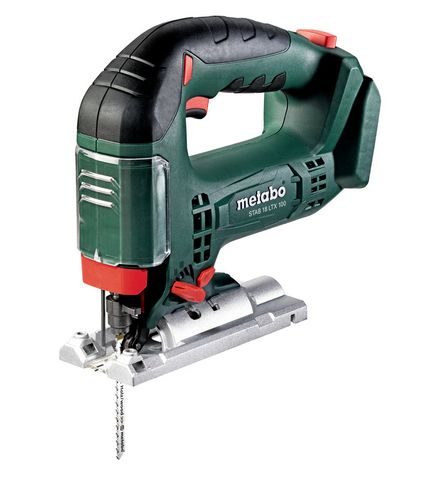

METABO

JIGSAW D-HANDLE (18v Skin)

Art ID:
JDH-18

Description

PRODUCT DESCRIPTION

  • Precise and material-matched sawing due to the variable stroke rate, pendulum stroke and low-lying saw blade guidance with spring support
  • Metabo "Quick" for changing saw blades without tools and with automatic ejection
  • Top handle with non-slip soft-grip surface
  • Selectable shaving blower function ensures free view of cutting line

PRODUCT SPECIFICATION

  • Type of battery pack: LiHD
  • Battery voltage: 18 V
  • Cutting depth wood: 100 mm / 4 "
  • Cutting depth NF metal: 25 mm / 1 "
  • Cutting depth sheet steel: 10 mm / 3/8 "
  • Swivel range from / to: - 45 / + 45 °
  • Pendulum stroke levels: 4
  • Strokes in idle: 0 - 2800 rpm
  • Saw blade stroke: 22 mm / 7/8 "
  • Weight without battery pack: 2 kg / 4.4 lbs
  • Weight with battery pack: 2.4 kg / 5.3 lbs
  • Mfg. Part Number: 601003890

Vibration

  • Sawing wood: 9.8 m/s²
  • Uncertainty of measurement K: 1.5 m/s²
  • Sawing metal: 6.5 m/s²
  • Uncertainty of measurement K: 1.5 m/s²

Noise emission

  • Sound pressure level: 84 dB(A)
  • Sound power level (LwA): 95 dB(A)
  • Uncertainty of measurement K: 3 dB(A)
