LOCKTON

'195 Series' DOOR CLOSER - Cam Action - PULL (1-5)

Art ID:
SGDC195-S-B

Description

PRODUCT DESCRIPTION

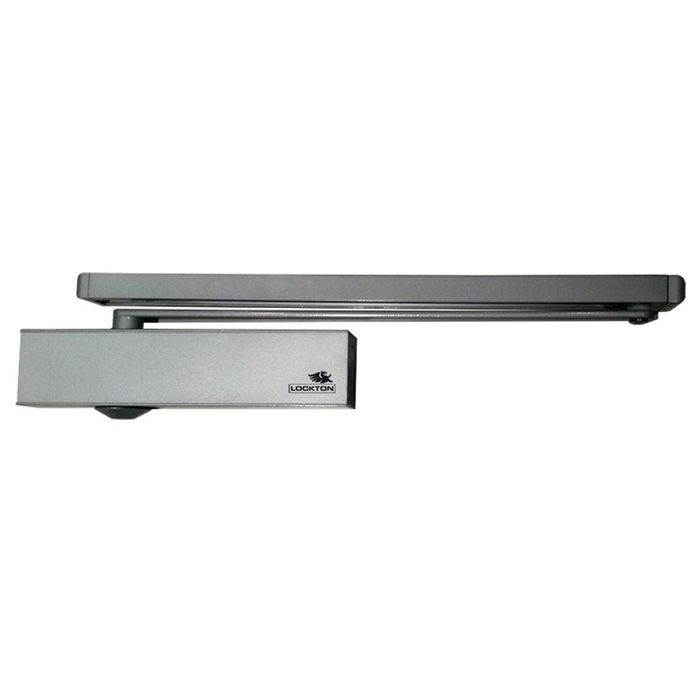

The LOCKTON Art. SGDC195-S-B Cam Action PULL Door Closer.

PRODUCT SPECIFICATION

  • Cam Action
  • B-Type - Pull side of the door fixing & Push side transom fixing
  • Optional Hold open insert

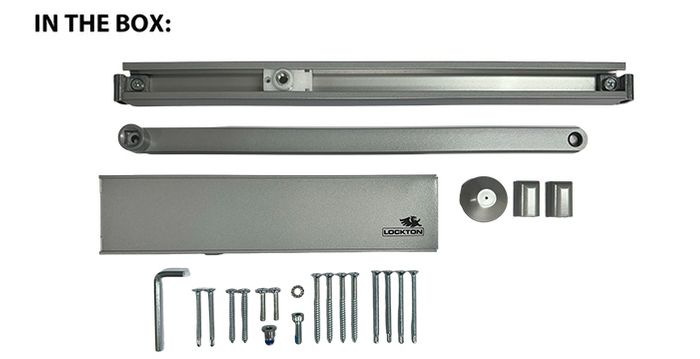

  • Mounting hardware
  • Adjustable Backcheck
  • Delayed Action
  • Simple to read installation instructions
  • Can be fitted with optional Hold Open Insert (please see RELATED PRODUCTS)
  • Closing range 180° - 15°
  • Latching speed range 15° - 0°
  • Suitable for door sizes 2-5
  • Size #2: Door width of 850mm & Weight of 40kg
  • Size #3: Door width of 950mm & weight of 60kg
  • Size #4: Door width of 1100mm & Weight of 80kg
  • Size #5: Door width of 1100mm & Weight of 100kg
  • 10 Year Warranty (*)
  • Fire Rated AS1905, As1530
  • Tested & certified to BS EN 1154:1997
  • MADE IN TAIWAN
