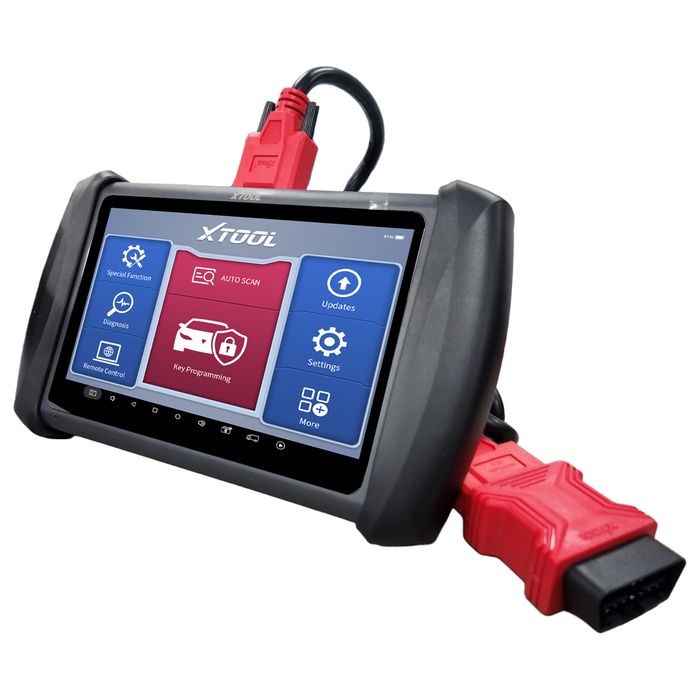

XTOOL Elite IK is an Extremely Powerful & Compact Diagnostic Key & Remote Programming Machine.

The Elite IK is a smaller, more economical alternative to the ELITE with a near equivalent level of power and functionality.

It is capable of programming the majority of Vehicle types from 1996- to current models.

It does not require Tokens to program Keys & Remotes.

Regular updates are available as they are rolled out and the unit is updated via WiFi.

XTOOL supports the following situations:

  • Lost Keys
  • Additional Keys
  • Remote programming
  • Pin code reading
  • Pin code calculators
  • Read + Clear fault codes
  • Data recording & Screenshots
Main Differences from Elite:
  • Compact design and smaller footprint
  • Economic price point allows for multiple purchases that can maintain service levels and standards for your company
XTOOL Elite IK purchase includes:

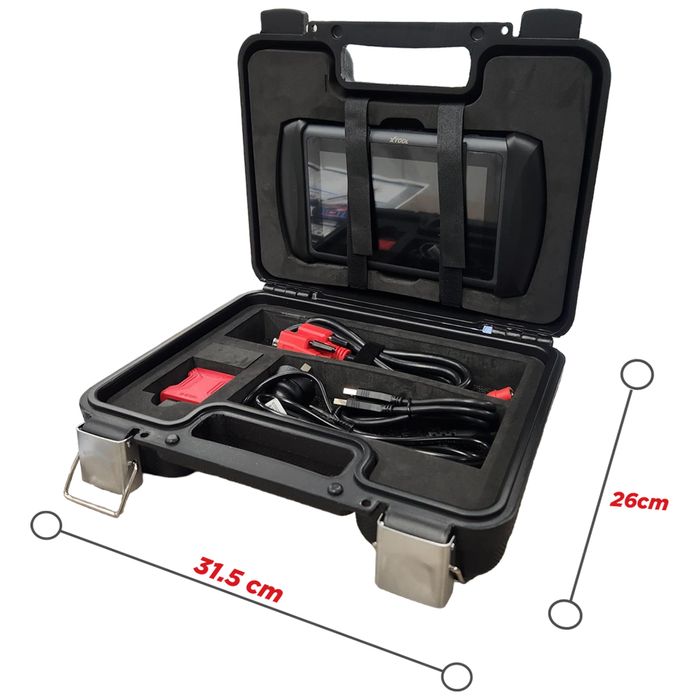

  • Compact Tool Case
  • Mini USB to USB Type C
  • USB Cable
  • OBD Main Cable
  • Tablet Charger
  • OBDII-16 Adapter
  • Quick Start Guide
  • Certificate of Quality
  • XTOOL ELITE IK TABLET ‘7’ inch LED touch screen, 1024*600 resolution WITH SRS+, XTOOL & TEAMVIEWER


The SRS+ XTOOL provides information specific to vehicles in the Australian & New Zealand market.

  • X-tool quick view for Diagnostic Key/Remote Programming
  • Immobiliser information & X-tool Compatibility
  • X-tool comprehensive pathways & manuals
  • Transponder & Remote Info & ordering options
  • Key blade reference types for JMA, KEYDIY & Silca
  • Remote programming instructions
  • Troubleshooting Manuals
  • Training Videos on Vehicles

Note: There is an annual charge that covers both XTOOL updates & SRS XTOOL access. The 1st year is included with the purchase of the tool.

  • OS: Android 10
  • Processor: 2GHz Quad core
  • Memory: 2GB standard - 32GB RAM with SD card expansion
  • Display: 7.0-inch touch screen with 1024 × 600 resolution
  • Connectivity: USB/Wi-Fi/Wired
  • Sensors: Gravity sensor, light sensor
  • Audio: Microphone, dual speakers
  • Power & Battery: 5000mAh, 3.65V lithium-polymer battery
  • Power Voltage: 5V
  • Power Consumption: 8W
  • Operating Temperature: -20°C to 60°C (-4°F to 140°F)
  • Storage Temperature: -40°C to 700°C (-40°F to 158°F)
  • Humidity: <90%
  • Dimensions (L x W x H): 249 x 142 x 33.5mm
